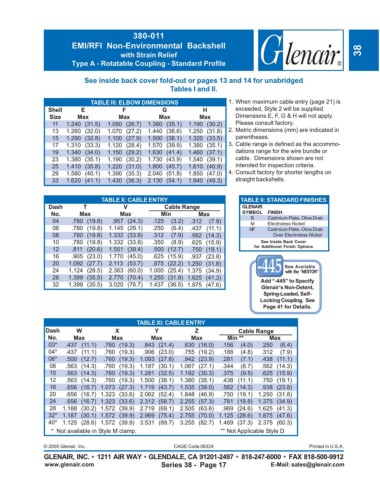

Page 153 - Circular Connector Backshells and Accessories

380-011
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type A - Rotatable Coupling - Standard Profile

See inside back cover fold-out or pages 13 and 14 for unabridged
Tables I and II.

TABLE III: ELBOW DIMENSIONS 1. When maximum cable entry (page 21) is
Shell E F G H exceeded, Style 2 will be supplied.
Size Max Max Max Max Dimensions E, F, G & H will not apply.
11 1.240 (31.5) 1.050 (26.7) 1.380 (35.1) 1.190 (30.2) Please consult factory.
13 1.260 (32.0) 1.070 (27.2) 1.440 (36.6) 1.250 (31.8) 2. Metric dimensions (mm) are indicated in
15 1.290 (32.8) 1.100 (27.9) 1.500 (38.1) 1.320 (33.5) parentheses.
17 1.310 (33.3) 1.120 (28.4) 1.570 (39.9) 1.380 (35.1) 3. Cable range is defined as the accommo-
19 1.340 (34.0) 1.150 (29.2) 1.630 (41.4) 1.460 (37.1) dations range for the wire bundle or
23 1.380 (35.1) 1.190 (30.2) 1.730 (43.9) 1.540 (39.1) cable. Dimensions shown are not
25 1.410 (35.8) 1.220 (31.0) 1.800 (45.7) 1.610 (40.9) intended for inspection criteria.
29 1.580 (40.1) 1.390 (35.3) 2.040 (51.8) 1.850 (47.0) 4. Consult factory for shorter lengths on
33 1.620 (41.1) 1.430 (36.3) 2.130 (54.1) 1.940 (49.3) straight backshells.

TABLE X: CABLE ENTRY TABLE II: STANDARD FINISHES
Dash T V Cable Range GLENAIR
No. Max Max Min Max SYMBOL FINISH
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) B Cadmium Plate, Olive Drab
M
Electroless Nickel
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) NF Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) Over Electroless Nickel
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) See Inside Back Cover
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) for Additional Finish Options
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8)
Now Available
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) with the “NESTOR”
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) Add “-445” to Specify
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D
