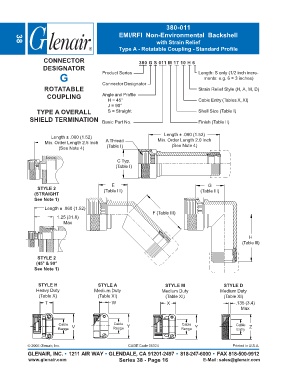

Page 152 - Circular Connector Backshells and Accessories

380-011
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type A - Rotatable Coupling - Standard Profile

CONNECTOR 380 G S 011 M 17 10 H 6
DESIGNATOR
G Product Series Length: S only (1/2 inch incre-
ments: e.g. 6 = 3 inches)
Connector Designator
ROTATABLE Strain Relief Style (H, A, M, D)
COUPLING Angle and Profile
H = 45° Cable Entry (Tables X, XI)
J = 90°
TYPE A OVERALL S = Straight Shell Size (Table I)
SHIELD TERMINATION Basic Part No. Finish (Table II)

Length ± .060 (1.52)
Length ± .060 (1.52)
Min. Order Length 2.5 Inch A Thread Min. Order Length 2.0 Inch
(See Note 4)
(See Note 4) (Table I)

C Typ.
(Table I)

E G
STYLE 2 (Table III) (Table III)
(STRAIGHT
See Note 1)

Length ± .060 (1.52)
F (Table III)
1.25 (31.8)
Max

H
(Table III)

STYLE 2
(45° & 90°
See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable
Range Range Range Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 16 E-Mail: sales@glenair.com
