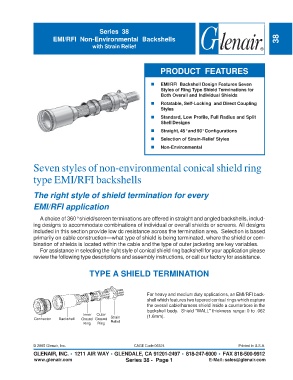

Page 137 - Circular Connector Backshells and Accessories

Series 38
EMI/RFI Non-Environmental Backshells 38
with Strain Relief

PRODUCT FEATURES

„ „ „ „ „ EMI/RFI Backshell Design Features Seven
Styles of Ring Type Shield Terminations for
Both Overall and Individual Shields
„ „ „ „ „ Rotatable, Self-Locking and Direct Coupling
Styles
„ „ „ „ „ Standard, Low Profile, Full Radius and Split
Shell Designs
„ „ „ „ „ Straight, 45° and 90° Configurations

„ „ „ „ „ Selection of Strain-Relief Styles
„ „ „ „ „ Non-Environmental

Seven styles of non-environmental conical shield ring

type EMI/RFI backshells

The right style of shield termination for every

EMI/RFI application

A choice of 360° shield/screen terminations are offered in straight and angled backshells, includ-
ing designs to accommodate combinations of individual or overall shields or screens. All designs
included in this section provide low dc resistance across the termination area. Selection is based
primarily on cable construction—what type of shield is being terminated, where the shield or com-
bination of shields is located within the cable and the type of outer jacketing are key variables.
For assistance in selecting the right style of conical shield ring backshell for your application please
review the following type descriptions and assembly instructions, or call our factory for assistance.

TYPE A SHIELD TERMINATION

For heavy and medium duty applications, an EMI/RFI back-
shell which features two tapered conical rings which capture
the overall cable/harness shield inside a counterbore in the
backshell body. Shield "WALL" thickness range: 0 to .062
Inner Outer (1.6mm).
Connector Backshell Ground Ground Strain
Ring Ring Relief

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 1 E-Mail: sales@glenair.com
