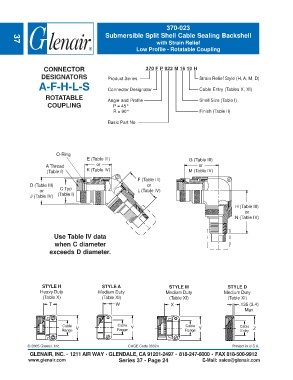

Page 132 - Circular Connector Backshells and Accessories

370-023
Submersible Split Shell Cable Sealing Backshell
with Strain Relief
37
Low Profile - Rotatable Coupling

CONNECTOR 370 F P 023 M 16 10 H
DESIGNATORS Product Series Strain Relief Style (H, A, M, D)
A-F-H-L-S Connector Designator Cable Entry (Tables X, XI)

ROTATABLE Angle and Profile Shell Size (Table I)
COUPLING P = 45°
R = 90° Finish (Table II)

Basic Part No.

O-Ring
E (Table III) G (Table III)
A Thread or or
(Table I) K (Table IV) M (Table IV)
F (Table III)
D (Table III) or
or C Typ L (Table IV)
J (Table IV) (Table I)

H (Table III)
or
N (Table IV)

Use Table IV data
when C diameter
exceeds D diameter.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable Z
Range Range Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 37 - Page 24 E-Mail: sales@glenair.com
