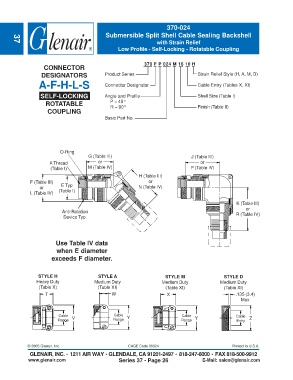

370-024
Submersible Split Shell Cable Sealing Backshell
with Strain Relief
37
Low Profile - Self-Locking - Rotatable Coupling

370 F P 024 M 16 10 H
CONNECTOR
DESIGNATORS Product Series Strain Relief Style (H, A, M, D)
A-F-H-L-S Connector Designator Cable Entry (Tables X, XI)

SELF-LOCKING Angle and Profile Shell Size (Table I)
ROTATABLE P = 45° Finish (Table II)
R = 90°
COUPLING
Basic Part No.

O-Ring
G (Table III) J (Table III)
A Thread or or
(Table I) M (Table IV) P (Table IV)
H (Table III)
F (Table III) or
or E Typ N (Table IV)
L (Table IV) (Table I)
K (Table III)
or
Anti-Rotation R (Table IV)
Device Typ.

Use Table IV data
when E diameter
exceeds F diameter.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable Z
Range Range Range Entry
