Page 126 - Circular Connector Backshells and Accessories
P. 126

370-004

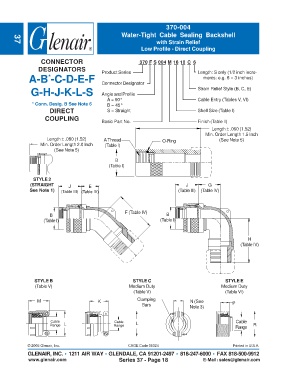

                                                    Water-Tight Cable Sealing Backshell
                                                                  with Strain Relief
       37
                                                            Low Profile - Direct Coupling

                  CONNECTOR                                370 F S 004 M 16 10 C  6
                 DESIGNATORS                Product Series                          Length: S only (1/2 inch incre-
             A-B -C-D-E-F                   Connector Designator                      ments: e.g. 6 = 3 inches)
                     *
              G-H-J-K-L-S                   Angle and Profile                       Strain Relief Style (B, C, E)

                                              A = 90°                               Cable Entry (Tables V, VI)
              * Conn. Desig. B See Note 6     B = 45°
                      DIRECT                  S = Straight                          Shell Size (Table I)
                    COUPLING                Basic Part No.                          Finish (Table II)

                                                                                          Length ± .060 (1.52)
                                                                                       Min. Order Length 1.5 Inch
                     Length ± .060 (1.52)   A Thread                 O-Ring                  (See Note 5)
                  Min. Order Length 2.0 Inch  (Table I)
                        (See Note 5)

                                                 B
                                               (Table I)


               STYLE 2
              (STRAIGHT       J       E                                        J        G
             See Note 1)   (Table III) (Table IV)                           (Table III)  (Table IV)




                                                     F (Table IV)
                      B                                                B
                   (Table I)                                        (Table I)



                                                                                                         H
                                                                                                     (Table IV)







               STYLE B                                   STYLE C                               STYLE E
                (Table V)                              Medium Duty                           Medium Duty
                                                         (Table V)                             (Table VI)

                 M                        K               Clamping              N (See
                                                            Bars                                  P
                                                                                Note 3)

                      Cable                      Cable                                              Cable
                      Range L                    Range    L                                        Range   R
