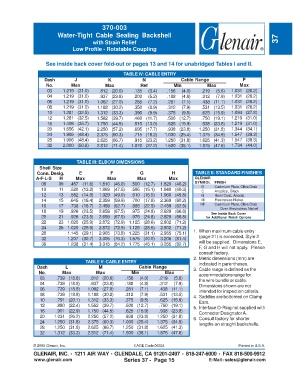

370-003
Water-Tight Cable Sealing Backshell
with Strain Relief 37
Low Profile - Rotatable Coupling

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE iV: CABLE ENTRY
Dash J K N Cable Range P
No. Max Max Ref Min Max Max
03 1.219 (31.0) .812 (20.6) .135 (3.4) .156 (4.0) .219 (5.6) 1.031 (26.2)
04 1.219 (31.0) .937 (23.8) .203 (5.2) .188 (4.8) .312 (7.9) 1.031 (26.2)
06 1.219 (31.0) 1.062 (27.0) .285 (7.2) .281 (7.1) .438 (11.1) 1.031 (26.2)
08 1.219 (31.0) 1.188 (30.2) .350 (8.9) .312 (7.9) .531 (13.5) 1.031 (26.2)
10 1.281 (32.5) 1.312 (33.3) .390 (9.9) .375 (9.5) .625 (15.9) 1.094 (27.8)
12 1.281 (32.5) 1.562 (39.7) .460 (11.7) .500 (12.7) .750 (19.1) 1.219 (31.0)
16 1.406 (35.7) 1.750 (44.5) .510 (13.0) .625 (15.9) .938 (23.8) 1.219 (31.0)
20 1.656 (42.1) 2.250 (57.2) .695 (17.7) .938 (23.8) 1.250 (31.8) 1.344 (34.1)
24 1.906 (48.4) 2.375 (60.3) .715 (18.2) 1.000 (25.4) 1.375 (34.9) 1.547 (39.3)
28 1.906 (48.4) 2.625 (66.7) .915 (23.2) 1.250 (31.8) 1.625 (41.3) 1.547 (39.3)
32 2.000 (50.8) 2.812 (71.4) 1.070 (27.2) 1.500 (38.1) 1.875 (47.6) 1.734 (44.0)

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H TABLE II: STANDARD FINISHES
A-F-L-S H Max Max Max Max GLENAIR
08 09 .457 (11.6) 1.810 (46.0) .500 (12.7) 1.820 (46.2) SYMBOL FINISH
10 11 .520 (13.2) 1.869 (47.5) .595 (15.1) 1.940 (49.3) B Cadmium Plate, Olive Drab
C
Anodize, Black
12 13 .582 (14.8) 1.929 (49.0) .610 (15.5) 1.960 (49.8) G Hard Coat, Anodic
14 15 .645 (16.4) 2.359 (59.9) .700 (17.8) 2.369 (60.2) M Electroless Nickel
16 17 .738 (18.7) 2.469 (62.7) .885 (22.5) 2.459 (62.5) NF Cadmium Plate, Olive Drab
Over Electroless Nickel
18 19 .926 (23.5) 2.659 (67.5) .975 (24.8) 2.629 (66.8) See Inside Back Cover
20 21 .926 (23.5) 2.659 (67.5) .975 (24.8) 2.629 (66.8) for Additional Finish Options
22 23 1.020 (25.9) 2.872 (72.9) 1.125 (28.6) 2.802 (71.2)
24 25 1.020 (25.9) 2.872 (72.9) 1.125 (28.6) 2.802 (71.2)
28 1.145 (29.1) 2.905 (73.8) 1.225 (31.1) 2.955 (75.1) 1. When maximum cable entry
32 1.207 (30.7) 3.005 (76.3) 1.575 (40.0) 3.205 (81.4) (page 21) is exceeded, Style 2
36 1.238 (31.4) 3.315 (84.2) 1.775 (45.1) 3.255 (82.7) will be supplied. Dimensions E,
F, G and H will not apply. Please
consult factory.
2. Metric dimensions (mm) are
TABLE V: CABLE ENTRY indicated in parentheses.
Dash L M Cable Range 3. Cable range is defined as the
No. Max Max Min Max accommodations range for
03 .739 (18.8) .812 (20.6) .156 (4.0) .219 (5.6) the wire bundle or cable.
04 .739 (18.8) .937 (23.8) .188 (4.8) .312 (7.9) Dimensions shown are not
06 .739 (18.8) 1.062 (27.0) .281 (7.1) .438 (11.1) intended for inspection criteria.
08 .739 (18.8) 1.188 (30.2) .312 (7.9) .531 (13.5) 4. Saddles are bottomed on Clamp
10 .791 (20.1) 1.312 (33.3) .375 (9.5) .625 (15.9) Ears.
12 .880 (22.4) 1.562 (39.7) .500 (12.7) .750 (19.1) 5. Interface O-Ring not supplied with
16 .901 (22.9) 1.750 (44.5) .625 (15.9) .938 (23.8) Connector Designator A.
20 1.031 (26.2) 2.250 (57.2) .938 (23.8) 1.250 (31.8) 6. Consult factory for shorter
24 1.250 (31.8) 2.375 (60.3) 1.000 (25.4) 1.375 (34.9) lengths on straight backshells.
28 1.250 (31.8) 2.625 (66.7) 1.250 (31.8) 1.625 (41.3)
32 1.312 (33.3) 2.812 (71.4) 1.500 (38.1) 1.875 (47.6)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 37 - Page 15 E-Mail: sales@glenair.com
