P. 122

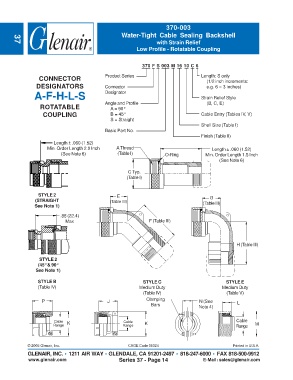

370-003
                                                    Water-Tight Cable Sealing Backshell
                                                                  with Strain Relief
       37
                                                          Low Profile - Rotatable Coupling


                                                            370 F S 003 M 16 10 C 6


                 CONNECTOR                   Product Series                          Length: S only
                                                                                       (1/2 inch increments:
                DESIGNATORS                  Connector                                 e.g. 6 = 3 inches)
               A-F-H-L-S                     Designator                              Strain Relief Style

                                             Angle and Profile                         (B, C, E)
                  ROTATABLE                    A = 90°
                   COUPLING                    B = 45°                               Cable Entry (Tables IV, V)
                                               S = Straight
                                                                                     Shell Size (Table I)
                                             Basic Part No.
                                                                                     Finish (Table II)
                       Length ± .060 (1.52)
                     Min. Order Length 2.0 Inch   A Thread                                Length ± .060 (1.52)
                           (See Note 6)           (Table I)           O-Ring           Min. Order Length 1.5 Inch
                                                                                             (See Note 6)

                                                       C Typ.
                                                      (Table I)


                 STYLE 2                          E
                (STRAIGHT                      (Table III)                               G
                See Note 1)                                                           (Table III)

                          .88 (22.4)
                            Max                                F (Table III)




                                                                                                    H (Table III)


                 STYLE 2
                 (45° & 90°
                See Note 1)

                 STYLE B                                     STYLE C                            STYLE E
                 (Table IV)                                Medium Duty                        Medium Duty
                                                             (Table IV)                         (Table V)
                   P                          J               Clamping              N (See          L
                                                                Bars
                                                                                    Note 4)

                        Cable  K                     Cable    K                                     Cable
                       Range                        Range                                           Range   M




             © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 37 - Page 14                E-Mail: sales@glenair.com
