P. 117

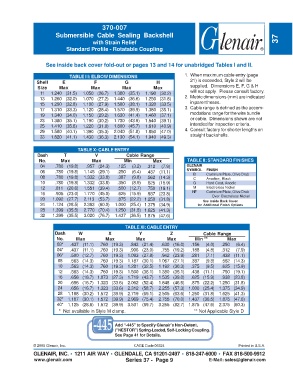

370-007
                        Submersible Cable Sealing Backshell
                                        with Strain Relief                                                           37
                             Standard Profile - Rotatable Coupling


                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

                              TABLE III: ELBOW DIMENSIONS                     1. When maximum cable entry (page
                Shell      E            F            G            H              21) is exceeded, Style 2 will be
                 Size     Max          Max          Max          Max             supplied.  Dimensions E, F, G & H
                  11  1.240 (31.5)  1.050 (26.7)  1.380 (35.1)  1.190 (30.2)     will not apply.  Please consult factory.
                  13  1.260 (32.0)  1.070 (27.2)  1.440 (36.6)  1.250 (31.8)  2. Metric dimensions (mm) are indicated
                  15  1.290 (32.8)  1.100 (27.9)  1.500 (38.1)  1.320 (33.5)     in parentheses.
                  17  1.310 (33.3)  1.120 (28.4)  1.570 (39.9)  1.380 (35.1)  3. Cable range is defined as the accom-
                  19  1.340 (34.0)  1.150 (29.2)  1.630 (41.4)  1.460 (37.1)     modations range for the wire bundle
                  23  1.380 (35.1)  1.190 (30.2)  1.730 (43.9)  1.540 (39.1)     or cable.  Dimensions shown are not
                  25  1.410 (35.8)  1.220 (31.0)  1.800 (45.7)  1.610 (40.9)     intended for inspection criteria.
                  29  1.580 (40.1)  1.390 (35.3)  2.040 (51.8)  1.850 (47.0)  4. Consult factory for shorter lengths on
                  33  1.620 (41.1)  1.430 (36.3)  2.130 (54.1)  1.940 (49.3)     straight backshells.

                                  TABLE X: CABLE ENTRY
                 Dash       T            V            Cable Range
                 No.      Max          Max           Min         Max           TABLE II: STANDARD FINISHES
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)     GLENAIR
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)    SYMBOL  FINISH
                  08    .780 (19.8)  1.332 (33.8)  .387  (9.8)  .562 (14.3)       B    Cadmium Plate, Olive Drab
                                                                                  C
                                                                                       Anodize, Black
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)       G    Hard Coat, Anodic
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)       M    Electroless Nickel
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)      NF    Cadmium Plate, Olive Drab
                                                                                          Over Electroless Nickel
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)           See Inside Back Cover
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)        for Additional Finish Options
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)
                                                     TABLE XI: CABLE ENTRY
                        Dash      W           X            Y            Z             Cable Range
                         No.     Max         Max          Max          Max         Min **       Max
                         03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                         04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                         06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                         08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .387  (9.8)  .562 (14.3)
                         10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                         12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                         16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .625 (15.9)  .938 (23.8)
                         20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .875 (22.2)  1.250 (31.8)
                         24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3) 1.000 (25.4)  1.375 (34.9)
                         28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6) 1.250 (31.8)  1.625 (41.3)
                         32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.437 (36.5)  1.875 (47.6)
                         40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.875 (47.6)  2.375 (60.3)
                          *  Not available in Style M clamp.                                                    ** Not Applicable Style D


                                                 Add “-445” to Specify Glenair’s Non-Detent,
                                                 ("NESTOR") Spring-Loaded, Self-Locking Coupling.
                                                 See Page 41 for Details.

               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                        Series 37 -  Page 9               E-Mail: sales@glenair.com
