P. 116

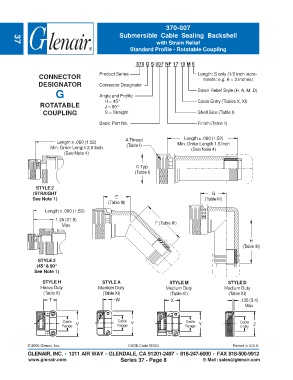

370-007
                                                   Submersible Cable Sealing Backshell
                                                                  with Strain Relief
       37
                                                       Standard Profile - Rotatable Coupling


                                                          370 G S 007 NF 17 10 M 6

                 CONNECTOR                 Product Series                           Length: S only (1/2 inch incre-
                                                                                      ments: e.g. 6 = 3 inches)
                 DESIGNATOR                Connector Designator
                        G                  Angle and Profile                        Strain Relief Style (H, A, M, D)

                                             H = 45°                                Cable Entry (Tables X, XI)
                  ROTATABLE                  J = 90°
                   COUPLING                  S = Straight                           Shell Size (Table I)

                                           Basic Part No.                           Finish (Table II)



                                                     A Thread                 Length ± .060 (1.52)
                         Length ± .060 (1.52)                              Min. Order Length 1.5 Inch
                      Min. Order Length 2.0 Inch      (Table I)                  (See Note 4)
                            (See Note 4)


                                                          C Typ.
                                                         (Table I)


                STYLE 2
               (STRAIGHT                                                                 G
               See Note 1)                       E                                     (Table III)
                                              (Table III)
                    Length ± .060 (1.52)
                        1.25 (31.8)
                           Max                                    F (Table III)


                                                                                                         H
                                                                                                      (Table III)

                 STYLE 2
                (45° & 90°
               See Note 1)

                   STYLE H                  STYLE A                     STYLE M                 STYLE D
                  Heavy Duty              Medium Duty                 Medium Duty              Medium Duty
                   (Table X)                (Table XI)                  (Table XI)              (Table XI)
                      T                          W                      X                            .135 (3.4)
                                                                                                       Max


                           Cable  V               Cable  Y                     Cable  Y              Cable  Z
                           Range                  Range                       Range                  Entry
