P. 115

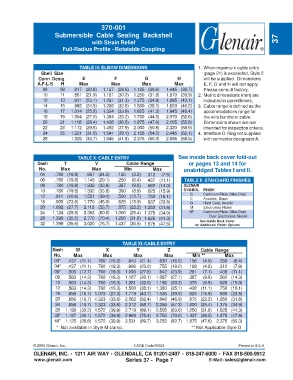

370-001
                        Submersible Cable Sealing Backshell
                                       with Strain Relief                                                            37
                           Full-Radius Profile - Rotatable Coupling



                                  TABLE III: ELBOW DIMENSIONS                       1. When maximum cable entry
                  Shell Size                                                          (page 21) is exceeded, Style 2
                 Conn. Desig.      E             F            G            H          will be supplied.  Dimensions
                 A-F-L-S   H      Max          Max          Max           Max         E, F, G and H will not apply.
                   08     09    .817 (20.8)  1.127 (28.6)  1.125 (28.6)  1.445 (36.7)  Please consult factory.
                   10     11    .861 (21.9)  1.181 (30.0)  1.250 (31.8)  1.570 (39.9)  2. Metric dimensions (mm) are
                   12     13    .911 (23.1)  1.231 (31.3)  1.375 (34.9)  1.695 (43.1)  indicated in parentheses.
                   14     15    .965 (24.5)  1.285 (32.6)  1.500 (38.1)  1.820 (46.2)  3. Cable range is defined as the
                   16     17   1.014 (25.8)  1.334 (33.9)  1.625 (41.3)  1.945 (49.4)  accommodations range for
                   18     19   1.064 (27.0)  1.384 (35.2)  1.750 (44.5)  2.070 (52.6)  the wire bundle or cable.
                   20     21   1.118 (28.4)  1.438 (36.5)  1.875 (47.6)  2.195 (55.8)  Dimensions shown are not
                   22     23   1.172 (29.8)  1.492 (37.9)  2.000 (50.8)  2.320 (58.9)  intended for inspection criteria.
                   24     25   1.221 (31.0)  1.541 (39.1)  2.125 (54.0)  2.445 (62.1)  4. Interface O-Ring not supplied
                   28          1.325 (33.7)  1.645 (41.8)  2.375 (60.3)  2.695 (68.5)  with connector designator A.



                                  TABLE X: CABLE ENTRY                      See inside back cover fold-out
                 Dash       T            V            Cable Range               or pages 13 and 14 for
                 No.      Max          Max           Min         Max          unabridged Tables I and II.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)   TABLE II: STANDARD FINISHES
                  08    .780 (19.8)  1.332 (33.8)  .387  (9.8)  .562 (14.3)   GLENAIR
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)   SYMBOL  FINISH
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)      B    Cadmium Plate, Olive Drab
                                                                                 C
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)     G     Anodize, Black
                                                                                      Hard Coat, Anodic
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)     M     Electroless Nickel
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)    NF    Cadmium Plate, Olive Drab
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)            Over Electroless Nickel
                                                                                     See Inside Back Cover
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)      for Additional Finish Options



                                                    TABLE XI: CABLE ENTRY
                       Dash      W           X            Y            Z             Cable Range
                        No.     Max         Max          Max          Max        Min **        Max
                        03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                        04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                        06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .387  (9.8)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .625 (15.9)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .875 (22.2)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3) 1.000 (25.4)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6) 1.250 (31.8)  1.625 (41.3)
                        32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.437 (36.5)  1.875 (47.6)
                        40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.875 (47.6)  2.375 (60.3)
                         *  Not available in Style M clamp.                                                    ** Not Applicable Style D



               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                        Series 37 -  Page 7               E-Mail: sales@glenair.com
