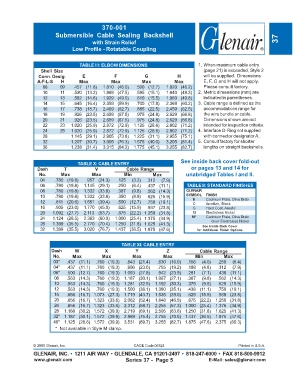

Page 113 - Circular Connector Backshells and Accessories
P. 113

370-001
                        Submersible  Cable  Sealing  Backshell
                                        with Strain Relief                                                           37
                               Low Profile - Rotatable Coupling


                                  TABLE III: ELBOW DIMENSIONS                       1. When maximum cable entry
                  Shell Size                                                          (page 21) is exceeded, Style 2
                 Conn. Desig.      E             F            G            H          will be supplied.  Dimensions
                 A-F-L-S  H       Max          Max          Max           Max         E, F, G and H will not apply.
                   08     09    .457 (11.6)  1.810 (46.0)  .500 (12.7)  1.820 (46.2)  Please consult factory.
                   10     11    .520 (13.2)  1.869 (47.5)  .595 (15.1)  1.940 (49.3)  2. Metric dimensions (mm) are
                   12     13    .582 (14.8)  1.929 (49.0)  .610 (15.5)  1.960 (49.8)  indicated in parentheses.
                   14     15    .645 (16.4)  2.359 (59.9)  .700 (17.8)  2.369 (60.2)  3. Cable range is defined as the
                   16     17    .738 (18.7)  2.469 (62.7)  .885 (22.5)  2.459 (62.5)  accommodations range for
                   18     19    .926 (23.5)  2.659 (67.5)  .975 (24.8)  2.629 (66.8)  the wire bundle or cable.
                   20     21    .926 (23.5)  2.659 (67.5)  .975 (24.8)  2.629 (66.8)  Dimensions shown are not
                   22     23   1.020 (25.9)  2.872 (72.9)  1.125 (28.6)  2.802 (71.2)  intended for inspection criteria.
                   24     25   1.020 (25.9)  2.872 (72.9)  1.125 (28.6)  2.802 (71.2)  4. Interface O-Ring not supplied
                   28          1.145 (29.1)  2.905 (73.8)  1.225 (31.1)  2.955 (75.1)  with connector designator A.
                   32          1.207 (30.7)  3.005 (76.3)  1.575 (40.0)  3.205 (81.4)  5. Consult factory for shorter
                   36          1.238 (31.4)  3.315 (84.2)  1.775 (45.1)  3.255 (82.7)  lengths on straight backshells.

                                                                             See inside back cover fold-out
                                  TABLE X: CABLE ENTRY
                 Dash       T            V            Cable Range                or pages 13 and 14 for
                 No.      Max          Max           Min         Max           unabridged Tables I and II.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)    TABLE II: STANDARD FINISHES
                  08    .780 (19.8)  1.332 (33.8)  .387  (9.8)  .562 (14.3)    GLENAIR
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)    SYMBOL  FINISH
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)       B    Cadmium Plate, Olive Drab
                                                                                       Anodize, Black
                                                                                  C
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)       G    Hard Coat, Anodic
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)       M    Electroless Nickel
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)     NF    Cadmium Plate, Olive Drab
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)             Over Electroless Nickel
                                                                                      See Inside Back Cover
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)       for Additional Finish Options

                                                    TABLE XI: CABLE ENTRY
                      Dash      W            X            Y            Z            Cable Range
                       No.     Max          Max         Max          Max           Min        Max
                       03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                       04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                       06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .387  (9.8)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .625 (15.9)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .875 (22.2)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3) 1.000 (25.4)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6) 1.250 (31.8)  1.625 (41.3)
                       32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.437 (36.5)  1.875 (47.6)
                       40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.875 (47.6)  2.375 (60.3)
                        *  Not available in Style M clamp.


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                        Series 37 -  Page 5               E-Mail: sales@glenair.com
