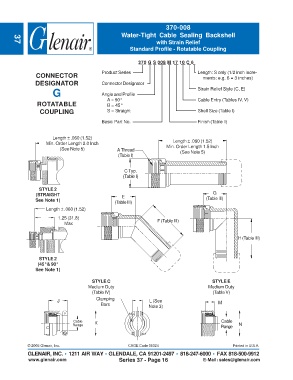

P. 124

370-008
                                                    Water-Tight Cable Sealing Backshell
                                                                  with Strain Relief
       37
                                                       Standard Profile - Rotatable Coupling


                                                           370 G S 008 M 17 10 C 6

                CONNECTOR                   Product Series                          Length: S only (1/2 inch incre-
                                                                                      ments: e.g. 6 = 3 inches)
                DESIGNATOR                  Connector Designator
                       G                    Angle and Profile                       Strain Relief Style (C, E)
                                              A = 90°                               Cable Entry (Tables IV, V)
                 ROTATABLE                    B = 45°
                  COUPLING                    S = Straight                          Shell Size (Table I)

                                            Basic Part No.                          Finish (Table II)


                       Length ± .060 (1.52)
                    Min. Order Length 2.0 Inch                           Length ± .060 (1.52)
                          (See Note 5)            A Thread             Min. Order Length 1.5 Inch
                                                                            (See Note 5)
                                                  (Table I)


                                                     C Typ.
                                                    (Table I)


                 STYLE 2
                (STRAIGHT                           E                                     G
                See Note 1)                                                            (Table III)
                                                 (Table III)
                    Length ± .060 (1.52)
                         1.25 (31.8)
                            Max                                    F (Table III)

                                                                                                     H (Table III)




                 STYLE 2
                 (45° & 90°
                See Note 1)

                                       STYLE C                                            STYLE E
                                      Medium Duty                                       Medium Duty
                                       (Table IV)                                         (Table V)
                                         Clamping
                         J                                     L (See                       M
                                           Bars
                                                               Note 3)

                                Cable    K                                                   Cable
                               Range                                                         Range   N




             © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                       Series 37 - Page 16                E-Mail: sales@glenair.com
