Page 48 - Circular Connector Backshells and Accessories

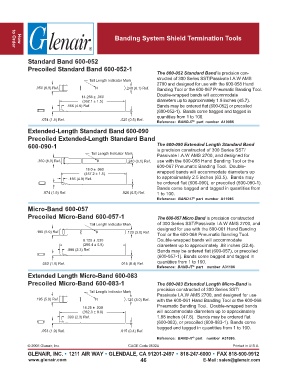

Banding System Shield Termination Tools
How
to Order

Standard Band 600-052
Precoiled Standard Band 600-052-1
The 600-052 Standard Band is precision con-
structed of 300 Series SST/Passivate I.A.W AMS
Tail Length Indicator Mark
2700 and designed for use with the 600-058 Hand
.350 (8.9) Ref. .240 (6.1) Ref. Banding Tool or the 600-067 Pneumatic Banding Tool.
Double-wrapped bands will accommodate
14.256 ± .060
(362.1 ± 1.5) diameters up to approximately 1.8 inches (45.7).
.156 (4.0) Ref. Bands may be ordered flat (600-052) or precoiled
(600-052-1). Bands come bagged and tagged in
quantities from 1 to 100.
.074 (1.9) Ref. .020 (0.5) Ref.
Reference: BAND-IT part number A10086
®
Extended-Length Standard Band 600-090
Precoiled Extended-Length Standard Band
600-090-1 The 600-090 Extended Length Standard Band
is precision constructed of 300 Series SST/
Tail Length Indicator Mark
Passivate I.A.W AMS 2700, and designed for
.350 (8.9) Ref. .240 (6.1) Ref. use with the 600-058 Hand Banding Tool or the
600-067 Pneumatic Banding Tool. Double-
18.0 ± .060 wrapped bands will accommodate diameters up
(457.2 ± 1.5)
.156 (4.0) Ref. to approximately 2.5 inches (63.5). Bands may
be ordered flat (600-090), or precoiled (600-090-1).
Bands come bagged and tagged in quantities from
0 . 7 ) 9 . 1 ( 4 R . f e 0 . 2 ) 5 . 0 ( 0 R . f e 1 to 100.
Reference: BAND-IT part number A11086
®
Micro-Band 600-057
Precoiled Micro-Band 600-057-1 The 600-057 Micro Band is precision constructed

Tail Length Indicator Mark of 300 Series SST/Passivate I.A.W AMS 2700, and
designed for use with the 600-061 Hand Banding
.195 (5.0) Ref. .120 (3.0) Ref. Tool or the 600-068 Pneumatic Banding Tool.
8.125 ± .030 Double-wrapped bands will accommodate
(206.4 ± 0.8) diameters up to approximately .88 inches (22.4).
.090 (2.3) Ref. Bands may be ordered flat (600-057), or precoiled
(600-057-1). Bands come bagged and tagged in
.053 (1.9) Ref. .015 (0.4) Ref. quantities from 1 to 100.
Reference: BAND-IT part number A31186
®
Extended Length Micro-Band 600-083
Precoiled Micro-Band 600-083-1 The 600-083 Extended Length Micro-Band is
precision constructed of 300 Series SST/
Tail Length Indicator Mark
Passivate I.A.W AMS 2700, and designed for use
.195 (5.0) Ref. .120 (3.0) Ref. with the 600-061 Hand Banding Tool or the 600-068
14.25 ± .030 Pneumatic Banding Tool. Double-wrapped bands
(362.0 ± 0.8) will accommodate diameters up to approximately
.090 (2.3) Ref. 1.88 inches (47.8). Bands may be ordered flat
(600-083), or precoiled (600-083-1). Bands come
bagged and tagged in quantities from 1 to 100.
.053 (1.9) Ref. .015 (0.4) Ref.
Reference: BAND-IT part number A31086.
®
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com 46 E-Mail: sales@glenair.com
