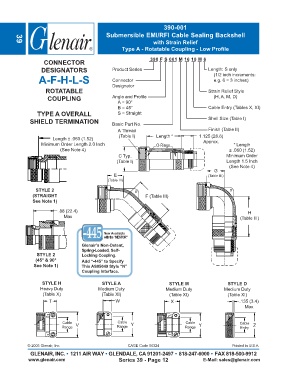

390-001
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type A - Rotatable Coupling - Low Profile

CONNECTOR 390 F S 001 M 16 10 M 6
DESIGNATORS Product Series Length: S only
A-F-H-L-S Connector (1/2 inch increments:
e.g. 6 = 3 inches)

ROTATABLE Designator Strain Relief Style
COUPLING Angle and Profile (H, A, M, D)
A = 90°
B = 45° Cable Entry (Tables X, XI)
TYPE A OVERALL S = Straight
SHIELD TERMINATION Basic Part No. Shell Size (Table I)
A Thread Finish (Table II)
(Table I) Length * 1.125 (28.6)
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch O-Rings Approx. * Length
(See Note 4) ± .060 (1.52)
C Typ. Minimum Order
(Table I) Length 1.5 Inch
(See Note 4)
G
E (Table III)
(Table III)

STYLE 2
(STRAIGHT F (Table III)
See Note 1)
.88 (22.4) H
Max (Table III)

Now Available
with the “NESTOR”
Glenair’s Non-Detent,
Spring-Loaded, Self-
STYLE 2 Locking Coupling.
(45° & 90° Add “-445” to Specify
See Note 1) This AS85049 Style “N”
Coupling Interface.

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable V Cable Y Cable Y Cable Z
Range Range Range Entry
