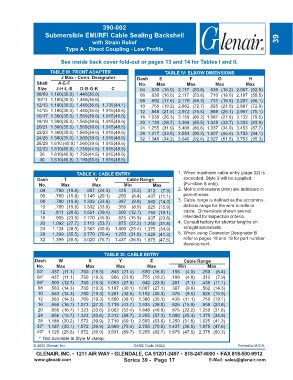

Page 279 - Circular Connector Backshells and Accessories

390-002
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type A - Direct Coupling - Low Profile

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Dash E F G H
Shell A-E-F No. Max Max Max Max
Size J-H-L-S D-B-G-K C 04 .630 (16.0) 2.117 (53.8) .636 (16.2) 2.067 (52.5)
08/09 1.180(30.0) 1.440(36.6) 06 .630 (16.0) 2.117 (53.8) .710 (18.0) 2.187 (55.5)
10/11 1.180(30.0) 1.440(36.6) 08 .692 (17.6) 2.179 (55.3) .731 (18.6) 2.207 (56.1)
12/13 1.180(30.0) 1.440(36.6) 1.735(44.1) 10 .755 (19.2) 2.862 (72.7) .825 (21.0) 2.867 (72.8)
14/15 1.180(30.0) 1.440(36.6) 1.915(48.6) 12 .848 (21.5) 2.972 (75.5) .988 (25.1) 2.957 (75.1)
16/17 1.380(35.0) 1.560(39.6) 1.915(48.6) 16 1.036 (26.3) 3.159 (80.2) 1.087 (27.6) 3.132 (79.6)
18/19 1.380(35.0) 1.560(39.6) 1.915(48.6) 20 1.130 (28.7) 3.368 (85.5) 1.325 (33.7) 3.303 (83.9)
20/21 1.380(35.0) 1.560(39.6) 1.915(48.6) 24 1.255 (31.9) 3.408 (86.6) 1.337 (34.0) 3.453 (87.7)
22/23 1.380(35.0) 1.560(39.6) 1.915(48.6) 28 1.317 (33.5) 3.553 (90.2) 1.827 (46.4) 3.703 (94.1)
24/25 1.380(35.0) 1.560(39.6) 1.915(48.6) 32 1.348 (34.2) 3.646 (92.6) 2.027 (51.5) 3.753 (95.3)
28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6)
32/33 1.610(40.9) 1.750(44.5) 1.915(48.6)
36 1.610(40.9) 1.750(44.5) 1.915(48.6)
40 1.610(40.9) 2.190(55.6) 1.915(48.6)

TABLE X: CABLE ENTRY 1. When maximum cable entry (page 22) is
Dash T V Cable Range exceeded, Style 2 will be supplied.
No. Max Max Min Max (Function S only).
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) 2. Metric dimensions (mm) are indicated in
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) parentheses.
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) 3. Cable range is defined as the accommo-
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) dations range for the wire bundle or
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) cable. Dimensions shown are not
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) intended for inspection criteria.
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) 4. Consult factory for shorter lengths on
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) straight backshells.
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 5. When using Connector Designator B
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) refer to pages 18 and 19 for part number
development.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp.
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 17 E-Mail: sales@glenair.com
