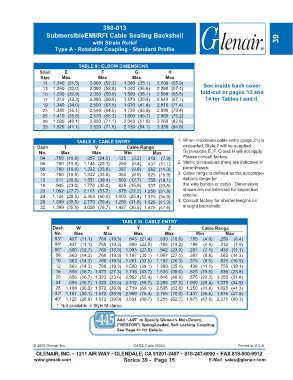

Page 277 - Circular Connector Backshells and Accessories

390-013
SubmersibleEMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type A - Rotatable Coupling - Standard Profile

TABLE III: ELBOW DIMENSIONS
Shell E F G H
Size Max Max Max Max
11 1.240 (31.5) 2.060 (52.3) 1.380 (35.1) 2.200 (55.9) See inside back cover
13 1.260 (32.0) 2.080 (52.8) 1.440 (36.6) 2.260 (57.4)
15 1.290 (32.8) 2.360 (59.9) 1.500 (38.1) 2.580 (65.5) fold-out or pages 13 and
17 1.310 (33.3) 2.380 (60.5) 1.570 (39.9) 2.640 (67.1) 14 for Tables I and II.
19 1.340 (34.0) 2.500 (63.5) 1.630 (41.4) 2.810 (71.4)
23 1.380 (35.1) 2.540 (64.5) 1.730 (43.9) 2.890 (73.4)
25 1.410 (35.8) 2.570 (65.3) 1.800 (45.7) 2.960 (75.2)
29 1.580 (40.1) 2.800 (71.1) 2.040 (51.8) 3.260 (82.8)
33 1.620 (41.1) 2.820 (71.6) 2.130 (54.1) 3.330 (84.6)

TABLE X: CABLE ENTRY 1. When maximum cable entry (page 21) is
Dash T V Cable Range exceeded, Style 2 will be supplied.
No. Max Max Min Max Dimensions E, F, G and H will not apply.
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) Please consult factory.
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) 2. Metric dimensions (mm) are indicated in
08 .780 (19.8) 1.332 (33.8) .387 (9.8) .562 (14.3) parentheses.
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) 3. Cable range is defined as the accommo-
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) dations range for
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) the wire bundle or cable. Dimensions
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) shown are not intended for inspection
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) criteria.
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 4. Consult factory for shorter lengths on
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) straight backshells.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp.

Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
