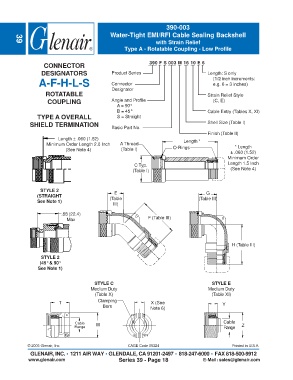

Page 280 - Circular Connector Backshells and Accessories

390-003
Water-Tight EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type A - Rotatable Coupling - Low Profile

CONNECTOR 390 F S 003 M 16 10 E 6
DESIGNATORS Product Series Length: S only
A-F-H-L-S Connector (1/2 inch increments:
e.g. 6 = 3 inches)
Designator
ROTATABLE Strain Relief Style
COUPLING Angle and Profile (C, E)
A = 90°
B = 45° Cable Entry (Tables X, XI)
TYPE A OVERALL S = Straight
SHIELD TERMINATION Basic Part No. Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52) Length *
Minimum Order Length 2.0 Inch A Thread * Length
(See Note 4) (Table I) O-Rings
± .060 (1.52)
Minimum Order
C Typ. Length 1.5 Inch
(Table I) (See Note 4)

STYLE 2
E
(STRAIGHT (Table G
See Note 1) (Table III)
III)
.88 (22.4)
Max F (Table III)

H (Table III)

STYLE 2
(45° & 90°
See Note 1)

STYLE C STYLE E
Medium Duty Medium Duty
(Table X) (Table XI)
T Clamping X (See Y
Bars Note 6)

Cable W Cable
Range Range Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 18 E-Mail: sales@glenair.com
