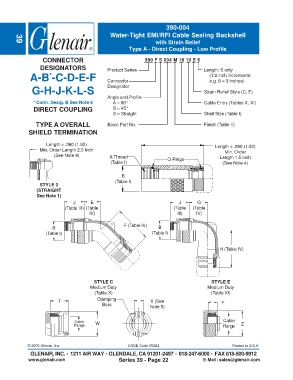

Page 284 - Circular Connector Backshells and Accessories

390-004
Water-Tight EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type A - Direct Coupling - Low Profile

CONNECTOR 390 F S 004 M 16 10 E 6
DESIGNATORS Product Series Length: S only
A-B -C-D-E-F Connector (1/2 inch increments:
*
e.g. 6 = 3 inches)
G-H-J-K-L-S Designator Strain Relief Style (C, E)

Angle and Profile
* Conn. Desig. B See Note 6 A = 90° Cable Entry (Tables X, XI)
DIRECT COUPLING B = 45°
S = Straight Shell Size (Table I)

TYPE A OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION

Length ± .060 (1.52) Length ± .060 (1.52)
Min. Order Length 2.0 Inch Min. Order
(See Note 4) A Thread Length 1.5 Inch
(Table I) O-Rings (See Note 4)

B
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
J E J G
(Table III) (Table (Table (Table
IV) III) IV)

F (Table IV)
B B
(Table I) (Table I)

H (Table IV)

STYLE C STYLE E
Medium Duty Medium Duty
(Table X) (Table XI)
T Clamping X (See
Bars Note 5) Y

Cable W Cable
Range Range Z
