Page 282 - Circular Connector Backshells and Accessories

390-014

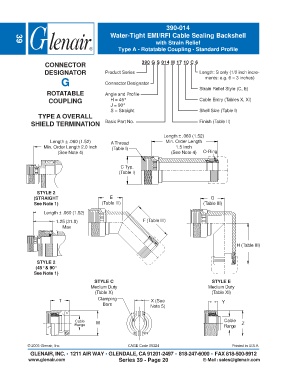

Water-Tight EMI/RFI Cable Sealing Backshell
with Strain Relief
39
Type A - Rotatable Coupling - Standard Profile

CONNECTOR 390 G S 014 M 17 10 C 6
DESIGNATOR Product Series Length: S only (1/2 inch incre-
G Connector Designator ments: e.g. 6 = 3 inches)
Strain Relief Style (C, E)
ROTATABLE Angle and Profile
COUPLING H = 45° Cable Entry (Tables X, XI)
J = 90°
S = Straight Shell Size (Table I)
TYPE A OVERALL
SHIELD TERMINATION Basic Part No. Finish (Table II)

Length ± .060 (1.52)
Length ± .060 (1.52) A Thread Min. Order Length
Min. Order Length 2.0 Inch (Table I) 1.5 Inch
(See Note 4) (See Note 4) O-Ring

C Typ.
(Table I)

STYLE 2
(STRAIGHT E G
See Note 1) (Table III) (Table III)

Length ± .060 (1.52)
1.25 (31.8) F (Table III)
Max

H (Table III)

STYLE 2
(45° & 90°
See Note 1)

STYLE C STYLE E
Medium Duty Medium Duty
(Table X) (Table XI)
T Clamping X (See Y
Bars Note 5)

Cable W Cable
Range Range Z
