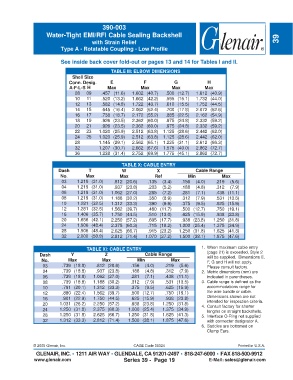

Page 281 - Circular Connector Backshells and Accessories
P. 281
390-003
Water-Tight EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type A - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .457 (11.6) 1.602 (40.7) .500 (12.7) 1.612 (40.9)
10 11 .520 (13.2) 1.662 (42.2) .595 (15.1) 1.732 (44.0)
12 13 .582 (14.8) 1.722 (43.7) .610 (15.5) 1.752 (44.5)
14 15 .645 (16.4) 2.062 (52.4) .700 (17.8) 2.072 (52.6)
16 17 .738 (18.7) 2.172 (55.2) .885 (22.5) 2.162 (54.9)
18 19 .926 (23.5) 2.362 (60.0) .975 (24.8) 2.332 (59.2)
20 21 .926 (23.5) 2.362 (60.0) .975 (24.8) 2.332 (59.2)
22 23 1.020 (25.9) 2.512 (63.8) 1.125 (28.6) 2.442 (62.0)
24 25 1.020 (25.9) 2.512 (63.8) 1.125 (28.6) 2.442 (62.0)
28 1.145 (29.1) 2.562 (65.1) 1.225 (31.1) 2.612 (66.3)
32 1.207 (30.7) 2.662 (67.6) 1.575 (40.0) 2.862 (72.7)
36 1.238 (31.4) 2.752 (69.9) 1.775 (45.1) 2.862 (72.7)
TABLE X: CABLE ENTRY
Dash T W X Cable Range
No. Max Max Ref Min Max
03 1.219 (31.0) .812 (20.6) .135 (3.4) .156 (4.0) .219 (5.6)
04 1.219 (31.0) .937 (23.8) .203 (5.2) .188 (4.8) .312 (7.9)
06 1.219 (31.0) 1.062 (27.0) .285 (7.2) .281 (7.1) .438 (11.1)
08 1.219 (31.0) 1.188 (30.2) .350 (8.9) .312 (7.9) .531 (13.5)
10 1.281 (32.5) 1.312 (33.3) .390 (9.9) .375 (9.5) .625 (15.9)
12 1.281 (32.5) 1.562 (39.7) .460 (11.7) .500 (12.7) .750 (19.1)
16 1.406 (35.7) 1.750 (44.5) .510 (13.0) .625 (15.9) .938 (23.8)
20 1.656 (42.1) 2.250 (57.2) .695 (17.7) .938 (23.8) 1.250 (31.8)
24 1.906 (48.4) 2.375 (60.3) .715 (18.2) 1.000 (25.4) 1.375 (34.9)
28 1.906 (48.4) 2.625 (66.7) .915 (23.2) 1.250 (31.8) 1.625 (41.3)
32 2.000 (50.8) 2.812 (71.4) 1.070 (27.2) 1.500 (38.1) 1.875 (47.6)
TABLE XI: CABLE ENTRY 1. When maximum cable entry
Dash Y Z Cable Range (page 21) is exceeded, Style 2
will be supplied. Dimensions E,
No. Max Max Min Max F, G and H will not apply.
03 .739 (18.8) .812 (20.6) .156 (4.0) .219 (5.6) Please consult factory.
04 .739 (18.8) .937 (23.8) .188 (4.8) .312 (7.9) 2. Metric dimensions (mm) are
06 .739 (18.8) 1.062 (27.0) .281 (7.1) .438 (11.1) indicated in parentheses.
08 .739 (18.8) 1.188 (30.2) .312 (7.9) .531 (13.5) 3. Cable range is defined as the
10 .791 (20.1) 1.312 (33.3) .375 (9.5) .625 (15.9) accommodations range for
12 .880 (22.4) 1.562 (39.7) .500 (12.7) .750 (19.1) the wire bundle or cable.
16 .901 (22.9) 1.750 (44.5) .625 (15.9) .938 (23.8) Dimensions shown are not
intended for inspection criteria.
20 1.031 (26.2) 2.250 (57.2) .938 (23.8) 1.250 (31.8) 4. Consult factory for shorter
24 1.250 (31.8) 2.375 (60.3) 1.000 (25.4) 1.375 (34.9) lengths on straight backshells.
28 1.250 (31.8) 2.625 (66.7) 1.250 (31.8) 1.625 (41.3) 5. Interface O-Ring not supplied
32 1.312 (33.3) 2.812 (71.4) 1.500 (38.1) 1.875 (47.6) with connector designator A.
6. Saddles are bottomed on
Clamp Ears.
