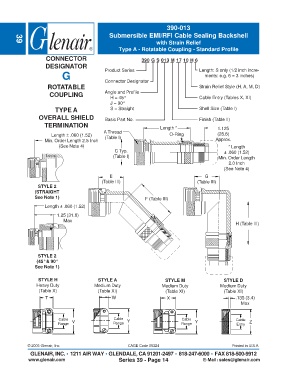

390-013
                                               Submersible EMI/RFI Cable Sealing Backshell
                                                                  with Strain Relief
        39
                                                   Type A - Rotatable Coupling - Standard Profile
                    CONNECTOR                               390 G S 013 M 17 10 H 6
                    DESIGNATOR               Product Series                         Length: S only (1/2 inch incre-
                           G                                                           ments: e.g. 6 = 3 inches)
                                             Connector Designator
                     ROTATABLE                                                      Strain Relief Style (H, A, M, D)
                      COUPLING               Angle and Profile
                                               H = 45°                              Cable Entry (Tables X, XI)
                                               J = 90°
                        TYPE A                 S = Straight                         Shell Size (Table I)
                 OVERALL SHIELD              Basic Part No.                         Finish (Table II)
                    TERMINATION                                     Length *                1.125
                                            A Thread
                      Length ± .060 (1.52)   (Table I)                  O-Ring              (28.6)
                    Min. Order Length 2.5 Inch                                             Approx.
                          (See Note 4)                                                          * Length
                                                 C Typ.                                        ± .060 (1.52)
                                                (Table I)                                   Min. Order Length
                                                                                                 2.0 Inch
                                                                                               (See Note 4)
                                               E                                       G
                                            (Table III)                            (Table III)
                 STYLE 2
                (STRAIGHT
                See Note 1)                                   F (Table III)
                    Length ± .060 (1.52)
                         1.25 (31.8)
                            Max
                                                                                                   H (Table III)






                 STYLE 2
                (45° & 90°
                See Note 1)

                 STYLE H                  STYLE A                     STYLE M                  STYLE D
                Heavy Duty              Medium Duty                  Medium Duty             Medium Duty
                 (Table X)                (Table XI)                  (Table XI)               (Table XI)
                    T                           W                      X                           .135 (3.4)
                                                                                                      Max



                          Cable  V               Cable  Y                    Cable  Y               Cable
                         Range                  Range                        Range                  Entry  Z
