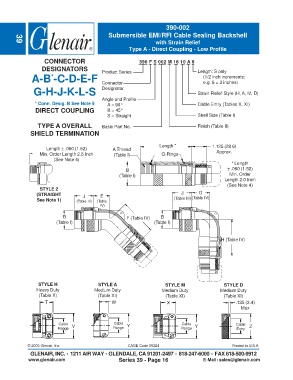

Page 278 - Circular Connector Backshells and Accessories
P. 278

390-002
                                              Submersible EMI/RFI Cable Sealing Backshell
                                                                  with Strain Relief
        39
                                                       Type A - Direct Coupling - Low Profile

                    CONNECTOR                              390 F S 002 M 16 10 A 6
                   DESIGNATORS              Product Series                          Length: S only
              A-B -C-D-E-F                  Connector                                 (1/2 inch increments:
                      *
                                                                                      e.g. 6 = 3 inches)
               G-H-J-K-L-S                  Designator                              Strain Relief Style (H, A, M, D)

                                            Angle and Profile
                * Conn. Desig. B See Note 5   A = 90°                               Cable Entry (Tables X, XI)
                DIRECT COUPLING               B = 45°
                                              S = Straight                          Shell Size (Table I)
                 TYPE A OVERALL             Basic Part No.                          Finish (Table II)
              SHIELD TERMINATION

                                                                    Length *              1.125 (28.6)
                    Length ± .060 (1.52)        A Thread
                  Min. Order Length 2.5 Inch     (Table I)           O-Rings               Approx.
                        (See Note 4)
                                                                                                  * Length
                                                      B                                         ± .060 (1.52)
                                                   (Table I)                                     Min. Order
                                                                                               Length 2.0 Inch
                                                                                                (See Note 4)
                  STYLE 2
                (STRAIGHT           J      E                                 J      G
                See Note 1)      (Table III)  (Table                      (Table III) (Table IV)
                                           IV)

                           B                          F (Table IV)  B
                         (Table I)                               (Table I)



                                                                                             H (Table IV)









                 STYLE H                  STYLE A                     STYLE M                  STYLE D
                Heavy Duty              Medium Duty                  Medium Duty             Medium Duty
                 (Table X)                (Table XI)                  (Table XI)               (Table XI)
                    T                           W                      X                           .135 (3.4)
                                                                                                      Max


                          Cable  V               Cable  Y                    Cable  Y               Cable  Z
                         Range                  Range                        Range                  Entry
